DURA WAVY TOP

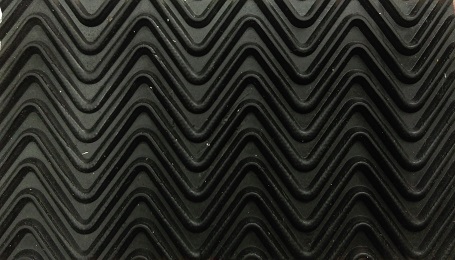

WAVY TOP CONVEYOR BELTS
Transportation or conveying of lightweight materials like cartons, paper, glass, packaged goods etc., on flat or inclined surfaces, requires a special kind of belt.
Wavy top belts provide good friction coefficient to ensure that the material being conveyed doesn’t slip or roll back.
SALIENT FEATURES
- These belts are usually being supplied in Jointless Length.
- Maximum Uniformity of thickness and strength all over the surface.
- Engineered to be driven over narrow pulley diameter (even lower than 100mm if supplied as Jointless belt).
- Can run at higher speed (as high as 25 m/sec).
- Option for minimum elongation (up to 1.0%) at ref. load.
- Belt can be manufactured in all specified grades meeting customer's requirement.
APPLICATIONS
-
Food Packaging Industry
-
Industrial Applications
-
Glass & Other Fragile Goods Manufacturing Industry
-
Bagging Plants
-
Corrugated Box & Paper Industry
PRODUCT FEATURES
| Standard Widths | Up to 1300mm (51") |
| Type of Fabric | NN / EP |
| Standard Belt Rating | 200 kN/m (110 PIW) to 1000 kN/m (571 PIW). |
| No. of Ply’s | 1 ply to 4 ply |
| Rubber Cover Thickness | Top cover: Up to 5 mm (1/5") Bottom cover: Up to 3mm (1/8") (Bare Back Surface also available) |
| Colour | Black |
| Edge | Cut Edge |
| Splicing Method | Hot / Mechanical |
| Cover Grades | Available in General Purpose Impact & Abrasion Resistant (M24,DIN-X,Y,HAR,SAR), Oil Resistant (OR), Heat Resistant (HR), Fire Resistant (FR) grades and combinations available on request. |
| Single Roll length | 200 Meters (650’) (Longer roll lengths available on request) |
| Standard Packing | Wrapping in HDPE sheets with Strapping. (Wooden Crate / Metal Crate packing is available on request) |
| Belt Identification Number | A unique BIN (Belt identification number) at every 10 meters (33’) |
*Specifications are subject to change without notice.

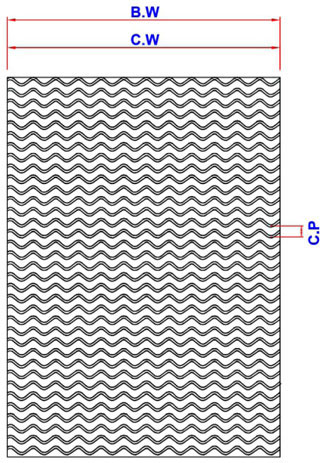

SIZES IN MM
| BW (Belt Width) | CW (Cleat Width) | CP (Cleat Pitch) | CH (Cleat Height) |
|---|---|---|---|
| Upto 1300 | Upto 1300 | 10 | 2 |
