DURA CORD
STEEL CORD CONVEYOR BELTS
DURA CORD steel cord conveyor belts are engineered to handle the toughest conveying applications across mining, ports, power plants, bulk material handling, and heavy industrial environments. Designed for exceptional tensile strength, high impact resistance, and minimal elongation, these belts are the preferred solution for long-distance and high-capacity conveying systems.
APPLICATIONS
MINING
PORTS & TERMINALS
CEMENT & CLINKER HANDLING
POWER PLANTS
FERTILISER PLANTS
STEEL INDUSTRY
STRUCTURE OF STEEL CORD BELT
CONSTRUCTION
STRUCTURE
FEATURE

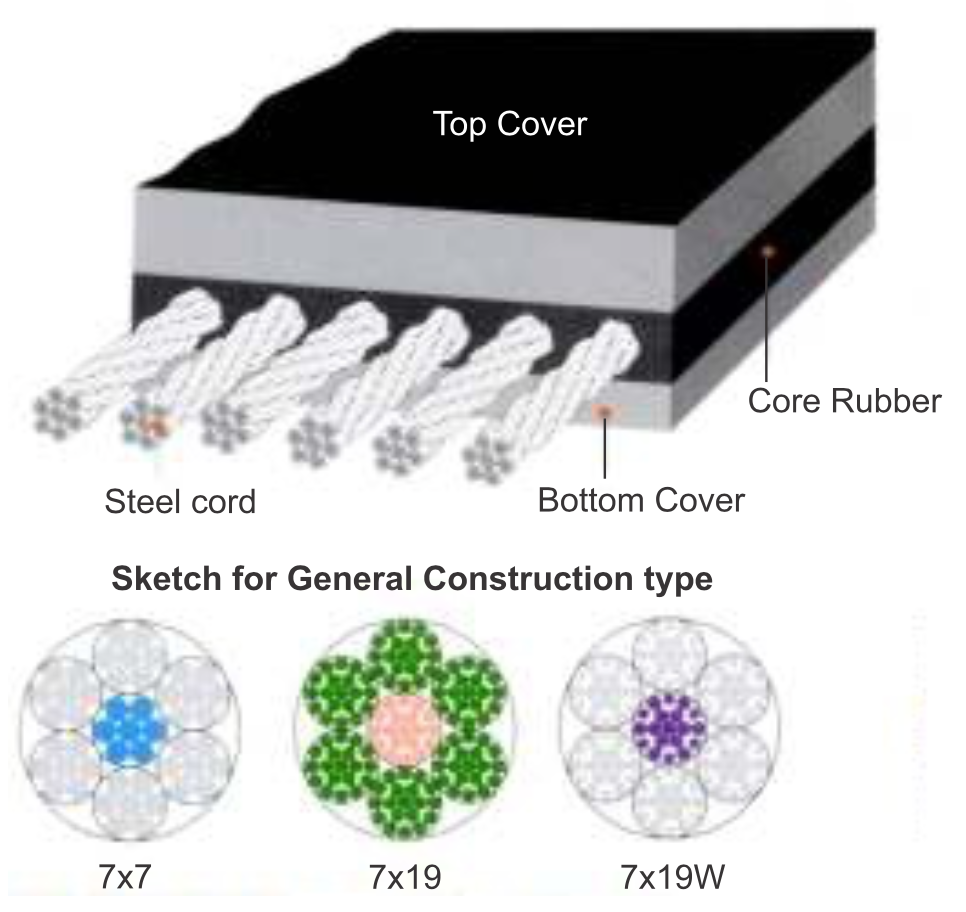

Belt reinforcement consists of galvanized steel cord and core rubber which possesses superior adhesive property. Belt body comprises of top and bottom layer of rubber. Steel cord is made up of a left and right twisting wire, arranged evenly and longitudinally in the belt.
With large tensile strength, long life, lower elongation, excellent troughability the belt is suitable for conveying materials over long distances with large loads and at high speeds.
CONSTRUCTION
FEATURE

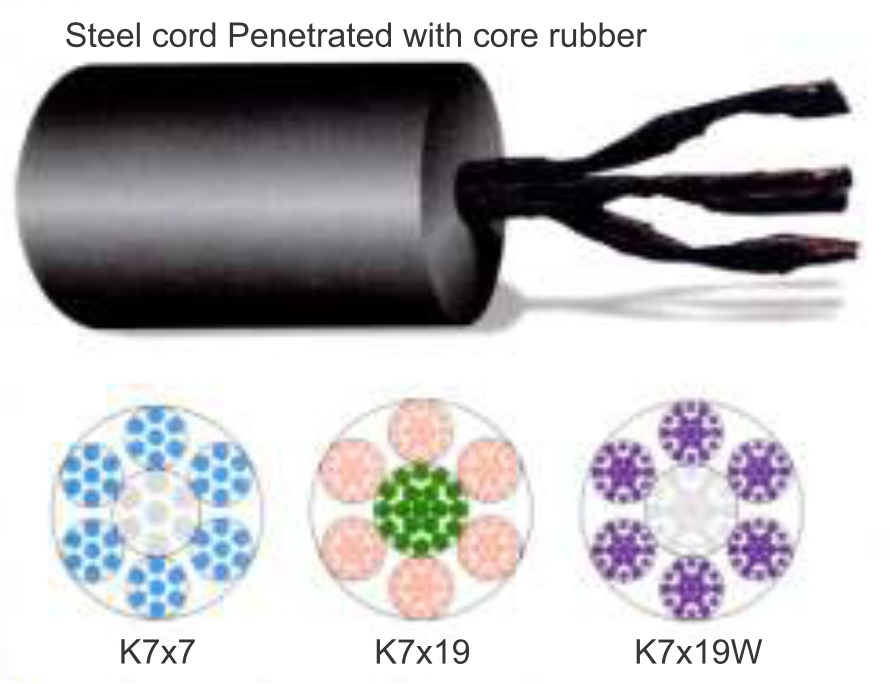

Each strand of steel wire has enough room for the core rubber to penetrate. This strengthens the bonding between the rubber and steel cord. Since the anticorrosive resistance to steel cord is excellent, the mutual shearing of strands and twisting of wires can be relaxed.
Because of excellent dynamic fatigue resistance, the life of belt is longer.
CONSTRUCTION
STRUCTURE
FEATURE

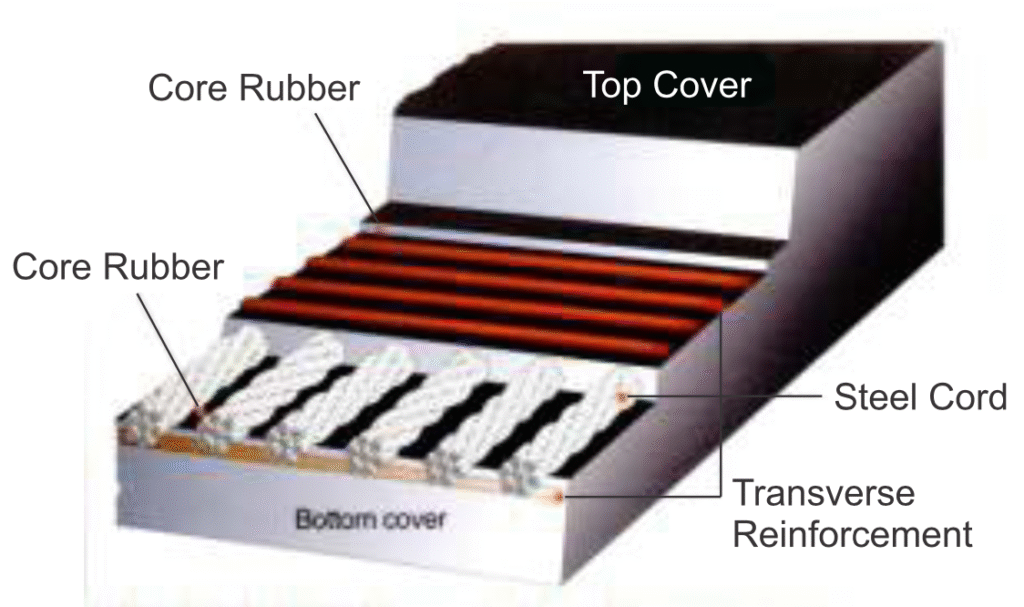

On both side or one side, the transverse reinforcement (steel cord, steel wire cord, fibre cord or textile fabric) is laid out.
High impact resistance
Rip & Tear resistance
PERFORMANCE OF STEEL CORD BELT
| ST Rating | Tensile strength (N/mm) | Max. Dia. of Cord (mm) | Min. Breaking Strength of Cord (kN/Cord) | Weight of belt (kg/m) | Pitch (mm) | Max. Working Strength of Belt (N/mm) | Min. Thickness of Cover (mm) | Min. Pulley Diameter (mm) - Head & Drive | Tail & Take-up | Bend & Snubs |
|---|---|---|---|---|---|---|---|---|---|---|
| ST 500 | 500 | 2.8 | 5.6 | 30.7 | 10 | 72 | 4 | 600 | 500 | 350 |
| ST 630 | 630 | 3.0 | 7 | 34.7 | 10 | 90 | 4 | 600 | 500 | 350 |
| ST 800 | 800 | 3.5 | 8.9 | 47.8 | 10 | 115 | 4 | 650 | 500 | 400 |
| ST 1000 | 1000 | 4.0 | 13.2 | 64 | 12 | 145 | 4 | 750 | 550 | 450 |
| ST 1250 | 1250 | 4.5 | 16.5 | 79.8 | 12 | 180 | 4 | 850 | 700 | 500 |
| ST 1400 | 1400 | 4.5 | 18.5 | 79.8 | 12 | 200 | 4 | 950 | 750 | 510 |
| ST 1600 | 1600 | 5.0 | 21.1 | 97.3 | 12 | 230 | 4 | 1000 | 800 | 600 |
| ST 1800 | 1800 | 5.0 | 23.7 | 97.3 | 12 | 260 | 4 | 1200 | 950 | 700 |
| ST 2000 | 2000 | 6.0 | 26.4 | 137 | 12 | 290 | 5 | 1200 | 950 | 700 |
| ST 2250 | 2250 | 6.3 | 29.6 | 155 | 12 | 320 | 5 | 1400 | 1200 | 800 |
| ST 2500 | 2500 | 7.2 | 41.7 | 196 | 15 | 360 | 5 | 1500 | 1200 | 900 |
| ST 2800 | 2800 | 7.6 | 46.7 | 221 | 15 | 400 | 5.5 | 1550 | 1250 | 950 |
| ST 3150 | 3150 | 8.1 | 52.5 | 253 | 15 | 450 | 5.5 | 1700 | 1350 | 1000 |
| ST 3500 | 3500 | 8.6 | 58.4 | 280 | 15 | 500 | 6 | 1800 | 1400 | 1050 |
| ST 4000 | 4000 | 9.2 | 66.7 | 316 | 15 | 580 | 6.5 | 1850 | 1400 | 1050 |
| ST 4500 | 4500 | 10.1 | 80.4 | 385 | 16 | 640 | 7 | 2000 | 1600 | 1200 |
| ST 5000 | 5000 | 10.6 | 89.3 | 414 | 16 | 720 | 7.5 | 2100 | 1700 | 1250 |
| ST 5400 | 5400 | 11.5 | 103.9 | 496 | 17 | 770 | 8 | 2400 | 1900 | 1400 |
