STEEP ANGLE CONVEYOR BELTS

Space is a major constraint in setting up cost eﬀective conveyor system in any industry. Hence, conveyor systems are designed with high inclination so as to accommodate them in the given constrained space.

We recommend DURA Super Trekker Conveyor Belts in such areas where the conveyor inclination angle is steep. The DURA Super Trekker Conveyor Belts are modern age Bucket Elevator Box Belts. These belts are made with cleats and sidewall. The concept of these belts is to carry material on steepest angle up to 90 degree with zero spillage.

These belts can be driven at the speed of up to 5 m/sec. The space requirement is quite less as compared to conventional belts.

SALIENT FEATURES

Corrugated sidewall belts for transport of bulk goods.
Saves space, since conveyance at inclines of up to 90° is possible.
Material conveyed is protected.
Extremely high stability is provided in the transverse direction, good longitudinal ﬂexibility.
Different feed and discharge directions are possible by rotating the vertical runs.
Side wall & Cleat are reinforced with Synthetic fabric to get better life.

PRODUCT FEATURES

Download PDF

Standard Widths	Up to 2000mm (78.75")
Type of Fabric	EP with Cross Stabilized Ply
Breaker Fabric Ply	Optional / as per customer requirement
Standard Belt Rating	315 kN/m (170 PIW) to 2500 kN/m (1400 PIW)
No. of Ply’s	2 Ply to 5 Ply
Rubber Cover Thickness	3mm (1/8") to 8mm (5/16")
Colour	Black
Edge	Cut Edge / Moulded Edge
Splicing Method	Hot / Cold
Single Roll length	Standard Length : 150 meters (500’)
Standard Packing	Packing in Metal Frame
Belt Identification Number	A unique BIN (Belt identification number) at every 10 meters (33’)

*Specifications are subject to change without notice.

APPLICATIONS

Steel Industry
Cement Industry
Coal & Coking Industry
Construction Industry
Potash and Salt Mining
Stones and Earth
Fertilizer & Chemical Industry
Recycling Plant
Agriculture

DURA SUPER TREKKER - COMPONENTS

DURA
Base Belts

DURA
Cleats

DURA
Side Wall

DURA
Fasteners

DURA
Slide Blinkers

DURA Base Belts

Base Belt plays a key role in steep angle conveyor belts. The base belt is made with special cross rigid member design to get more stability and rigidity. The base belt is designed to bend efﬁciently in a longitudinal direction and has greater rigidity in a transverse direction by using special reinforced fabrics with monofilament which creates a fabric carcass of high tension. The different design of cross rigid belts are available with us such as:

DURA Cleats

DURA Cleats are designed with proper rigidity to preclude excess backward bending due to gravitational force exerted by the material loaded in the cleats. By seeing certain critical applications, we have modiﬁed all type of cleats with Synthetic fabric reinforcement to avoid tearing due to material gravitational force. Depending upon the angle of inclination & the other factors the type of cleat is selected from the below listed range of DURA Cleats:

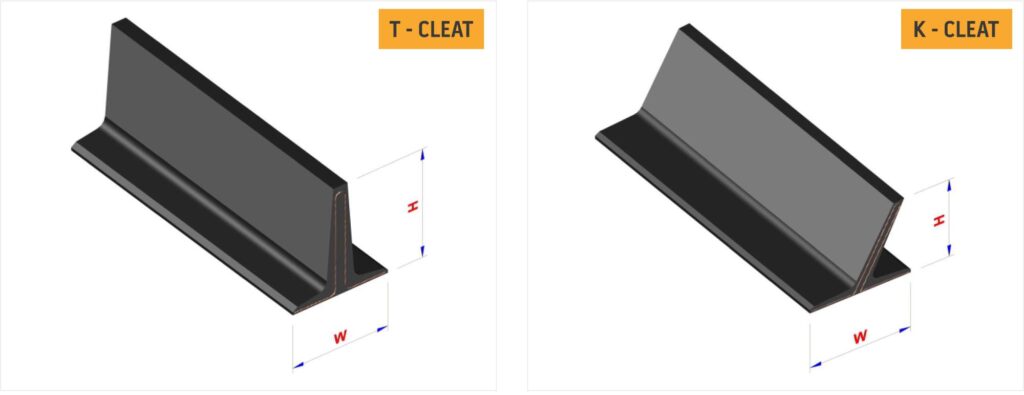

Type ‘T’, ‘K’, ‘TKS’ & ‘TKS3P’ cleats are reinforced into the side walls using metal fasteners.

Sizes in MM

SR. NO	TYPE	HEIGHT	BASE WIDTH
1	'T'	75	75
2	'T'	110	100
3	'K'	75	100
4	'K'	100	100
5	'TKS'	75	75
6	'TKS'	110	100
7	'TKS'	140	150
8	'TKS'	180	150
9	'TKS'	220	150
10	'TKS'	240	150
11	'TKS'	280	190
12	'TKS3P'	280	230
13	'TKS3P'	330	230
14	'TKS3P'	380	230

*The sizes not mentioned in this table can be manufactured up on request.

DURA Side Wall

The side wall has been designed to achieve adequate rigidity to avoid the buckling under compression experienced by it at the point of deﬂection. The top portion of the side wall has been designed against tear & gauging resistant by using special rubber compound having high elongation at break. The side walls are fully reinforced with synthetic fabric to get better life.

SR. NO	TYPE	HEIGHT	BASE WIDTH	PITCH
1	SW	40	60	40
2	SW	60	60	40
3	SWF	60	60	40
4	SWF	80	60	40
5	SWF	100	60	40
6	SWF	100	80	60
7	SWF	120	80	60
8	SWF	160	80	60
9	SWF	200	80	60
10	SWF	240	80	60
11	SWF	260	80	60
12	SWF	300	80	60
13	SWF	350	100	60
14	SWF	400	100	60

*The sizes not mentioned in this table can be manufactured up on request.

DURA Fasteners

DURA Slide Blinkers

All belts are given further reinforcements by mechanically ﬁxing the sidewall to each cleat with fasteners, washers and moulded nylon sidewall supporting ﬁxture. The same can be applied with or without the side blinkers.

Available as an option, side blinkers are placed between the wall and cleat. is installation will minimize the amount of material catching in between the corrugations and the cleat, therefore reducing carry back and spillage. Particularly useful in applications where the material is small and free ﬂowing.
